10686 RoboCabinet with 5 Axis Mill

Initial situation

Founded in 1985, BMK Bringmann Manufacturing Knowledge AG is known for its expertise in the production of complex, high-precision parts. In order to expand its capacities, the company invested in a Fehlmann Versa 745 5-axis milling machine.

Problem

Economical production would not be possible without automation, which is why BMK set out to find a clever automation solution.

"To run a profitable business, you need productive machine hours outside of normal working hours. Having specialists working at night and at weekends is not possible."

-Bernhard Bringmann, CEO BMK AG

Goals and requirements

BMK had clear ideas about what the ideal automation had to fulfill:

• Manual work on the machine must not be impaired in order to produce individual parts or for set-up work
• Direct part handling without having to procure many different clamping devices
• Short set-up time for new parts so that even small quantities can be automated profitably
• Small footprint to optimize output per valuable square meter of factory space

Solution

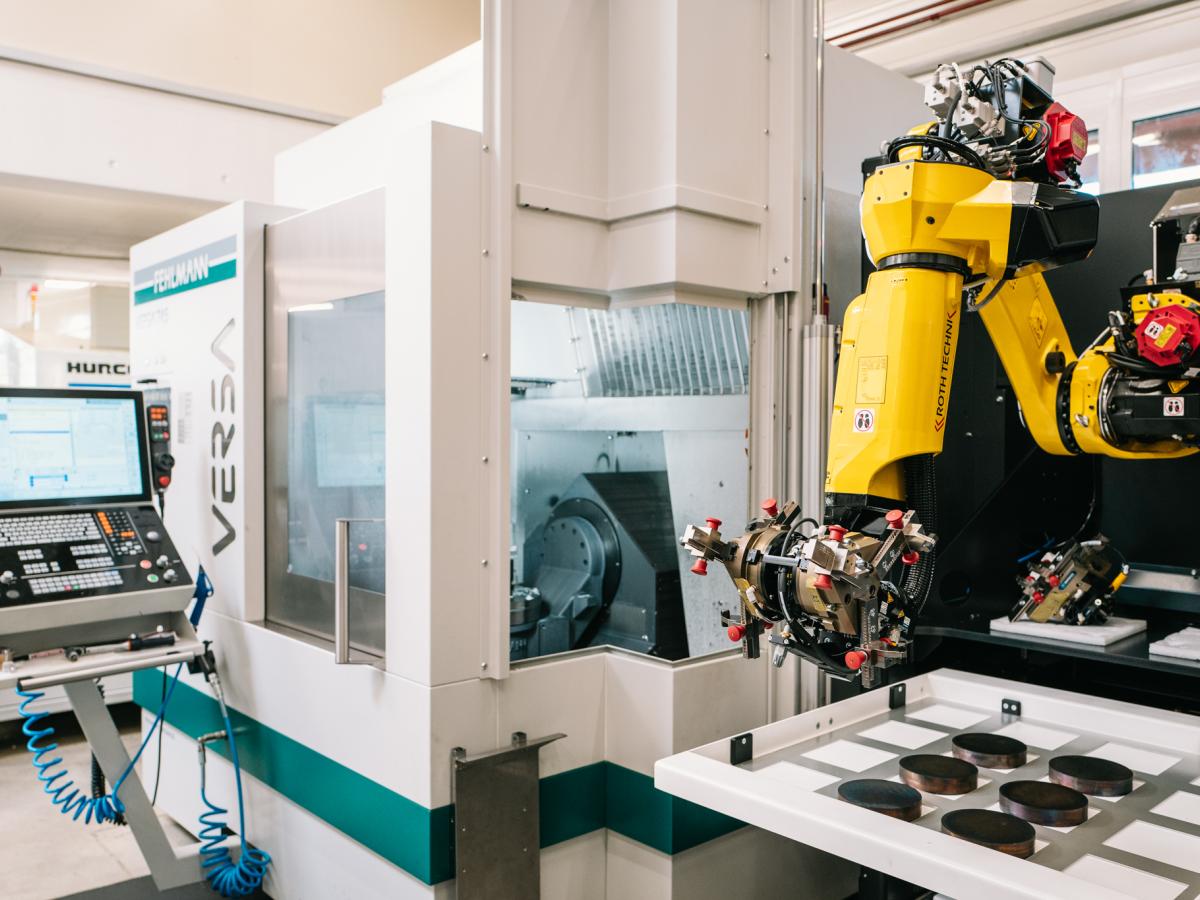

Roth Technik has solved this problem with the clever RoboCabinet standard cell. The small, flexible parts handling cell optimally meets all requirements. High flexibility, optimum footprint, the modern, intuitive HMI and maximized storage density are the hallmarks of this clever robot cell. The cell can be positioned on the left side, right side, front left or front right of the CNC machine without compromising accessibility. It is dual-machine capable and can be configured with a wide range of options to meet the exact needs of our customers.

Result/outcome

The result is impressive:

"With automation from Roth Technik, we can produce 24 hours a day and at weekends with single-shift work by our employees. An employee can also program or measure undisturbed during working hours, for example, without having to worry about production.

This makes us competitive for series production. This also reduces our delivery times and makes quality more stable.

It is very motivating for the employees to work with such a cool system and that boring machine set-up is no longer necessary."

-Bernhard Bringmann, CEO BMK AG
